Aluminium Foil Container Punchin Machine Silver Foil Container Making Machine SMC SIZE:7*7.5*Height 3.8m

Basic Information
Place of Origin: CHINA
Certification: CE
Model Number: ZL-T80
Minimum Order Quantity: 1SET
Packaging Details: WOODEN CASE
Delivery Time: 45-60 DAYS
Payment Terms: T/T
Supply Ability: 100SET/YEAR
Detail Information
SIZE: 7.5*7*4M POWER: 24KW
High Light:

aluminium foil cup making machine 7.5M


7.5M aluminium foil cup making machine


silver container making machine SMC

Product Description

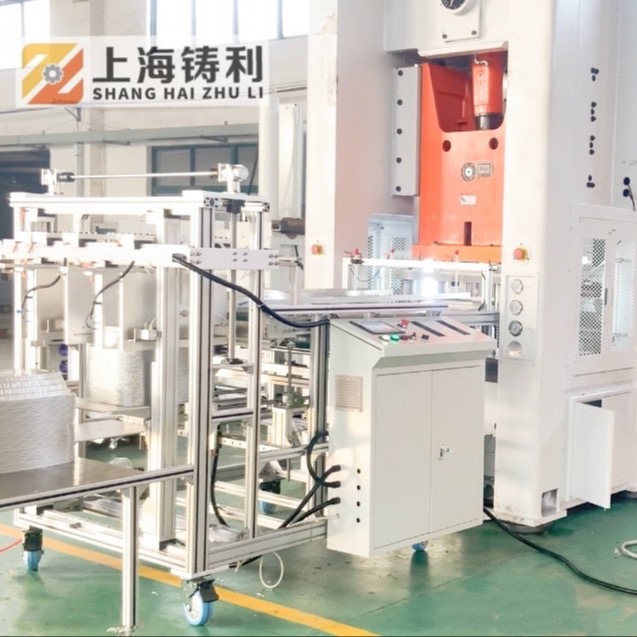

The press line ZL-T80/T130 is designed and developed specially for the aluminum food containers,dishes and trays production. From the decoiler to stacker ,from feeding to punching to stacking. Those aluminum foil containers can be obtained finally.

The main body of press line T80/T130 is a' H-frame press. Its recycling and closed system for oil .It’s easy for mold replacement and surface production,we have a die shifting arm and a die lifter mounted on the press which can change molds high efficiency.

The press configured with a servo motor,to make sure the high precision control of feeding step and speed.The height and location of the feeding system is adjustable to match the height of the tool currently in use on the press.

There are 12 electronic cams (solenoid valves) controlled by a PLC, providing simple operation settings. The functional usage of multiple cavities molds can be achieved,by large number of air outlets laid on press.

The ZL-T80/T130 press is equipped with 5 air tanks. The pneumatic control panel is more easy to operate.The press fits various kinds of molds for wrinkle-wall,smooth-wall,pet, airline containers and folded containers production.

Complete Automatic Press line T80/T130 include the following parts:
Decoiler+Press T80/T130+Mold Shifting arms with Lifter +Scrap Aspirator+Control Cabinet+ Stacker+ Scrap Baler.


High speed aluminum foil container making machine


1.Air compressor.

2. Automatic decoiler&feeder head.

3. Mitsubishi brand control panel&PLC.

4. 80tons Yangli brand H frame pneumatic press.

5. Mould.

6. Auto-stacker with1-5 lanes(optional).

7. scrap aspirator & press machine.


Model ZL-T80
Stroke 180-260mm
Working Speed 40~68strokes/min
Raw material Alloy 8 Series & 3 Series
Aluminum foil thickness 0.035mm~0.250mm
Compressed air needed 0.5- 0.8 Mpa, 0.2m3/min
Power 3P, 380V, 50Hz
Weight 12000KG
Solenoid valve with adjustable pressure 12
Feeder level adjustable Electric
Maximum mould dimensions 1250*1000mm

High speed aluminum foil container making machine


The advantages as below:


1.Top Safety and long lifetime,high precision control of feeding step and speed.

2.The replacement of the mould is convenient and easy to change.

3.The machine has memory function for each mould.

4.It’s suitable for large size single cavity,medium and small size multi-cavity moulds.

5.The height of ram is electrically adjustable to satisfied multiple request of different

moulds with diverse shapes and sizes.

6.Novel design for the roller of stacker,to assure the stronger stability.

7.Emergency stop with the automatic detection.

8.The width of the lanes can be adjustable to fit different size containers stacking.

9.CNC machining center, and its machining accuracy is very high.

10. Electric compelling grease lubrication system.


The moulds we can design and produce are as follows:


High speed aluminum foil container making machine


1.The moulds that we design and produce are suitable for almost every kind of machine or press.
2. We produce mould with the best quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure moulds are in top quality and long life.
3. To meet customers’ different requirement, we design and manufacture the mould in several rims, such as G rim, L rim, H rim, and IVC etc.
4. We can design and produce the mould in multi-cavities, 1, 2, 3, 4 cavities or matter it is one compartment container or multi-compartments container.

5. We can print your preferred logos upon request.

6.Scientific design make the Cutting Scrap Rate under good control.
7. Container shapes: square, rectangular, circular, oval, special shapes etc.


High speed aluminum foil container making machine


Mold processing equipment:


High speed aluminum foil container making machine  High speed aluminum foil container making machine


High speed aluminum foil container making machine  High speed aluminum foil container making machine


Packing and Delivery:

1.Before packing,we must test the machine and mold to run properly.
2.Stable package,professional and skilled loader reduce damage of product during transport.
3.We fixed our machine in container which will be protected well during shipping.
4.We use the wooden cabinet, protect the machine and mold during shipping.


High speed aluminum foil container making machine High speed aluminum foil container making machine



Our service:

1.Long terms warranty.

2.Special training service for our customer.
3.Consuming part or replacement can be sent to the user within 3 days after confirmation.

4.Finished Products OEM service.

5.Engineers available to service machinery overseas.

6.Online support.

7.Video technical support.




Q1: Do you accept customized orders?
A: Yes, we do.

Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.

Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.

Q4: Does the material need lubricating oil?
A: Yes . Lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.After the order is confirmed , we will provide you the oil supplier’s contact information.

Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.

Q6:How to install machine and train our staff on our factory?
A: We’ll send our engineers to your factory to install, test machines and give your workers.

Q7:Where can i get the aluminum foil jumbo rolls?
A: After order is confirmed we will offer customer jumbo roll supplier's contact information. You can contact them directly and compare the price. Material specification&temperation: ALLOY3003, TemperH24 Or ALLOY 8011, TemperH22.
