|COLOR:||WHITE ABD ORANGE||WEIGHT:||12000KG|
|VOLTAGE:||380V. 50HZ 3 PHASE||TYPE:||NEW|
|Product Name:||Hydraulic Food Container Punching Machine With High Capacity||Slide Stroke (mm):||180-260|
Hygienic Food Container Punching Machine,
SMC Food Container Punching Machine,
Hygienic food box making machine
Hydraunic food container punching machine with high capacity
The press line ZL-T80/T130 is designed and developed specially for the aluminum food containers,dishes and trays production. From the decoiler to stacker ,from feeding to punching to stacking. Those aluminum foil containers can be obtained finally.
The main body of press line T80/T130 is a' H-frame press. Its recycling and closed system for oil .It’s easy for mold replacement and surface production,we have a die shifting arm and a die lifter mounted on the press which can change molds high efficiency.
The press configured with a servo motor,to make sure the high precision control of feeding step and speed.The height and location of the feeding system is adjustable to match the height of the tool currently in use on the press.
There are 12 electronic cams (solenoid valves) controlled by a PLC, providing simple operation settings. The functional usage of multiple cavities molds can be achieved,by large number of air outlets laid on press.
The ZL-T80/T130 press is equipped with 5 air tanks. The pneumatic control panel is more easy to operate.The press fits various kinds of molds for wrinkle-wall,smooth-wall,pet, airline containers and folded containers production.
Complete Automatic Press line T80/T130 include the following parts:
Decoiler+Press T80/T130+Mold Shifting arms with Lifter +Scrap Aspirator+Control Cabinet+ Stacker+ Scrap Baler.
The advantages as below:
1. Top Safety and long lifetime,high precision control of feeding step and speed.
2. The replacement of the mould is convenient and easy to change.
3. The machine has memory function for each mould.
4. It’s suitable for large size single cavity,medium and small size multi-cavity moulds.
5. The height of ram is electrically adjustable to satisfied multiple request of different
moulds with diverse shapes and sizes.

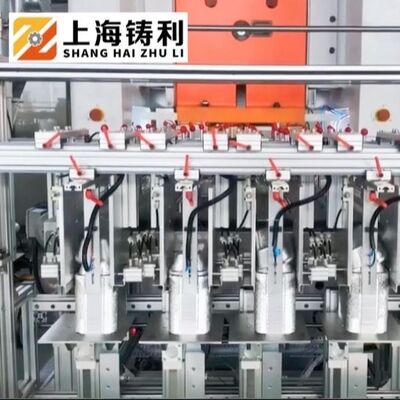

6. Novel design for the roller of stacker,to assure the stronger stability.
7. Emergency stop with the automatic detection.
8. The width of the lanes can be adjustable to fit different size containers stacking.
9. CNC machining center, and its machining accuracy is very high.
10. Electric compelling grease lubrication system.
|Slide Stroke (mm):||180-260|
|Machine Type:||H Frame Hydraulic Press|
|Return Force (kN):||800 kN|
|Place of Origin:||Shanghai, China|
|Brand Name:||SHANGHAI ZHULI|
|Voltage:||380V 50HZ 3P|
|Weight (T):||12 T|
|Motor Power (kw):||16 kw|
|Key Selling Points:||Automatic|
|Warranty:||More than 5 years|
|After-sales Service Provided:||Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service|
|After Warranty Service:||Video technical support, Online support, Spare parts, Field maintenance and repair service|
|Applicable Industries:||Manufacturing Plant|
|Local Service Location:||India|
|Showroom Location:||Egypt, Canada, Turkey, United States, Brazil, Pakistan, India, Mexico, Russia, Spain, UAE, South Africa|
|Marketing Type:||New Product 2020|
|Machinery Test Report:||Provided|
|Warranty of core components:||1 Year|
|Core Components:||Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine|
|Function:||Make aluminum foil Container|
|Die height adjustable:||390-470|
|Nominal Force (kN):||800|
1. Air compressor.
2. Automatic decoiler&feeder head.
3. Mitsubishi brand control panel&PLC.
4. 80tons Yangli brand H frame pneumatic press.
6. Auto-stacker with1-5 lanes(optional).
7. scrap aspirator & press machine.
Packing and Delivery:
1. before packing,We must test the machine and mold to run properly.
2. Stable package,professional and skilled loader reduce damage of product during transport.
3. we fixed our machine in container which will be protected well during shipping.
4. we use the wooden cabinet, protect the machine and mold during shipping.
1. Long terms warranty.
2. Special training service for our customer.
3. Consuming part or replacement can be sent to the user within 3 days after confirmation.
4. Finished Products OEM service.
5. Engineers available to service machinery overseas.
6. Online support.
7. Video technical support.
Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: Does the material need lubricating oil?
A: Yes . Lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.After the order is confirmed , we will provide you the oil supplier’s contact information.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6: How to install machine and train our staff on our factory?
A: We’ll send our engineers to your factory to install, test machines and give your workers
Q7: Where can i get the aluminum foil jumbo rolls?
A: After order is confirmed we will offer customer jumbo roll supplier's contact information. You can contact them directly and compare the price.
Material specification&temperation: ALLOY3003, TemperH24 Or ALLOY 8011, TemperH22
