Servo Driven Aluminium Food Container Machine 24KW 380V 50HZ High Speed Punching Press

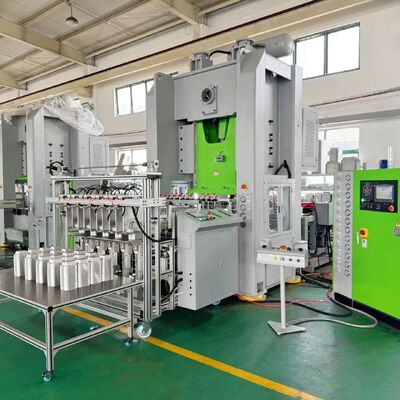

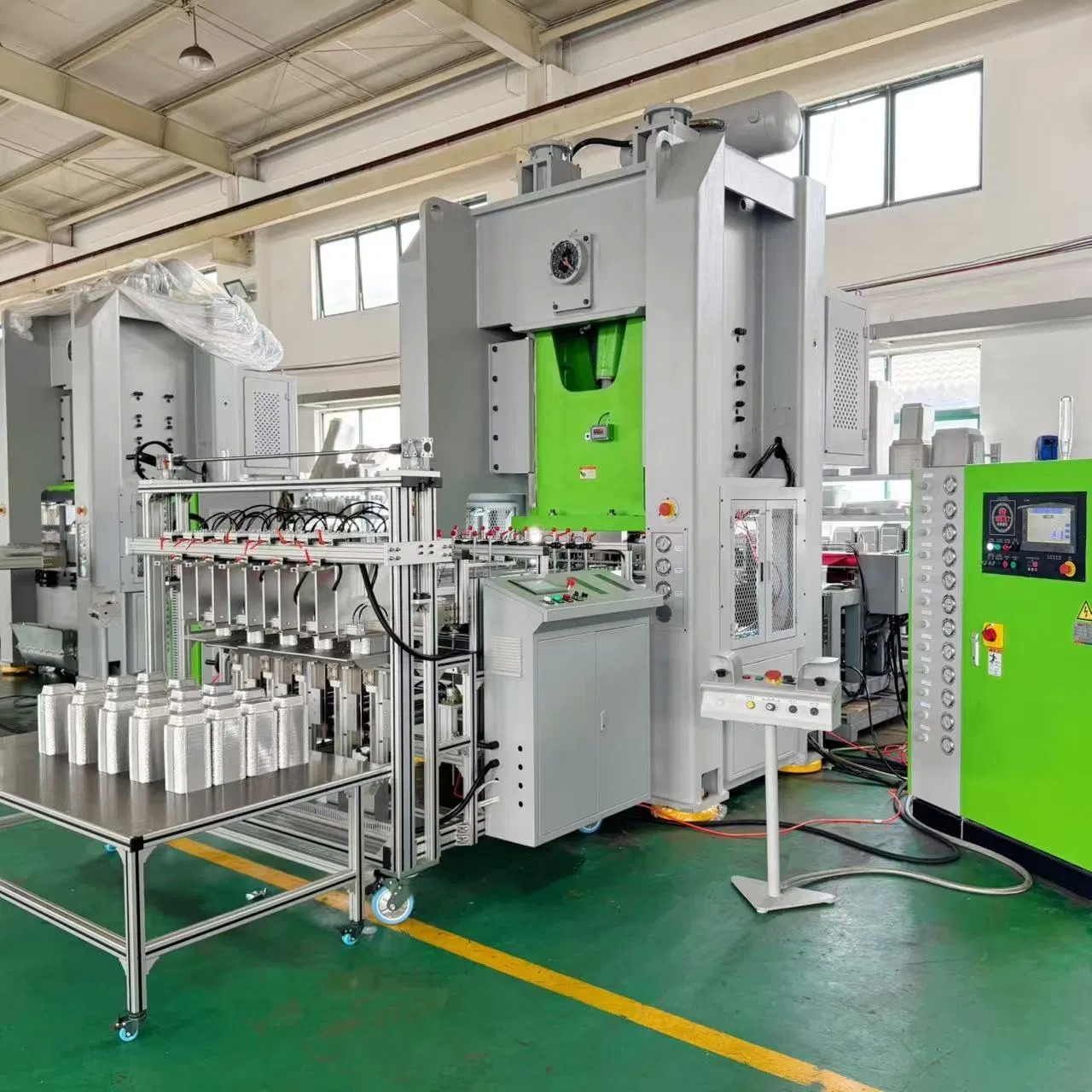

The Servo Driven Aluminium Food Container Machine ZL-T130 is a high speed pressing solution developed for the mass production of disposable aluminium foil containers, plates and trays. A servo motor drives the feeding system so that the feeding step and speed are controlled with high precision, while the ram height is electrically adjustable to match the mold currently in use. Combined with an 80 ton H frame press body and a strongly reinforced frame, the machine holds its working accuracy at 40 to 68 strokes per minute and keeps container wall thickness and rim shape stable across a long production run. Every unit is configured with Mitsubishi control components and Schneider low voltage parts to give dependable, repeatable output.

Operation is deliberately simple. Twelve electronic cams, that is solenoid valves with adjustable pressure, are controlled by a Mitsubishi PLC, and the height and location of the feeding system are adjustable so that the line can follow the tool mounted on the press. Five air tanks and an easy to use pneumatic control panel let the operator set up multi-cavity and multi-compartment molds without complex changeover, and a memory function stores the parameters of each mold so that switching to a known container size takes only minutes. The returning force of 800 kN and a slide stroke range of 180 to 260 mm let the press handle both thin airline containers and deeper folded trays.

• Servo Driven Feeding: high precision control of feeding step and speed keeps every container dimension repeatable and reduces cutting scrap.
• High Speed Output: a stable working speed of 40 to 68 strokes per minute suits large volume, export oriented production.
• Trusted Control System: Mitsubishi PLC, Mitsubishi inverter and Mitsubishi encoder are paired with Schneider low voltage components and SMC pneumatic parts.
• Electrically Adjustable Ram: the height of the ram is adjusted electrically to satisfy molds with diverse shapes and sizes.
• Multi Cavity Capability: the functional usage of multiple cavity molds is achieved through a large number of air outlets laid on the press.
• Fast and Safe Mold Change: a die shifting arm and die lifter support quick changeover, and each mold can be saved as a stored recipe.

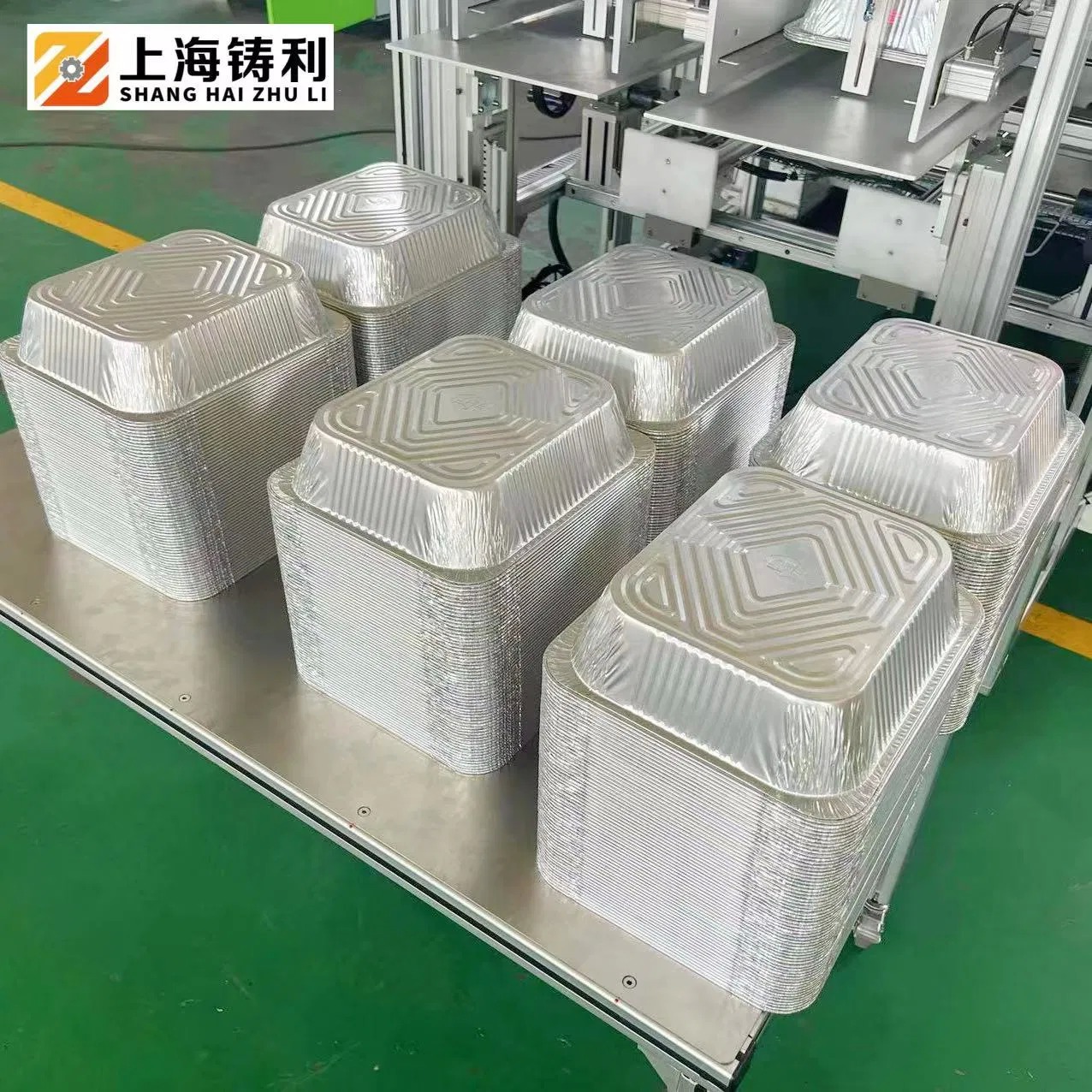

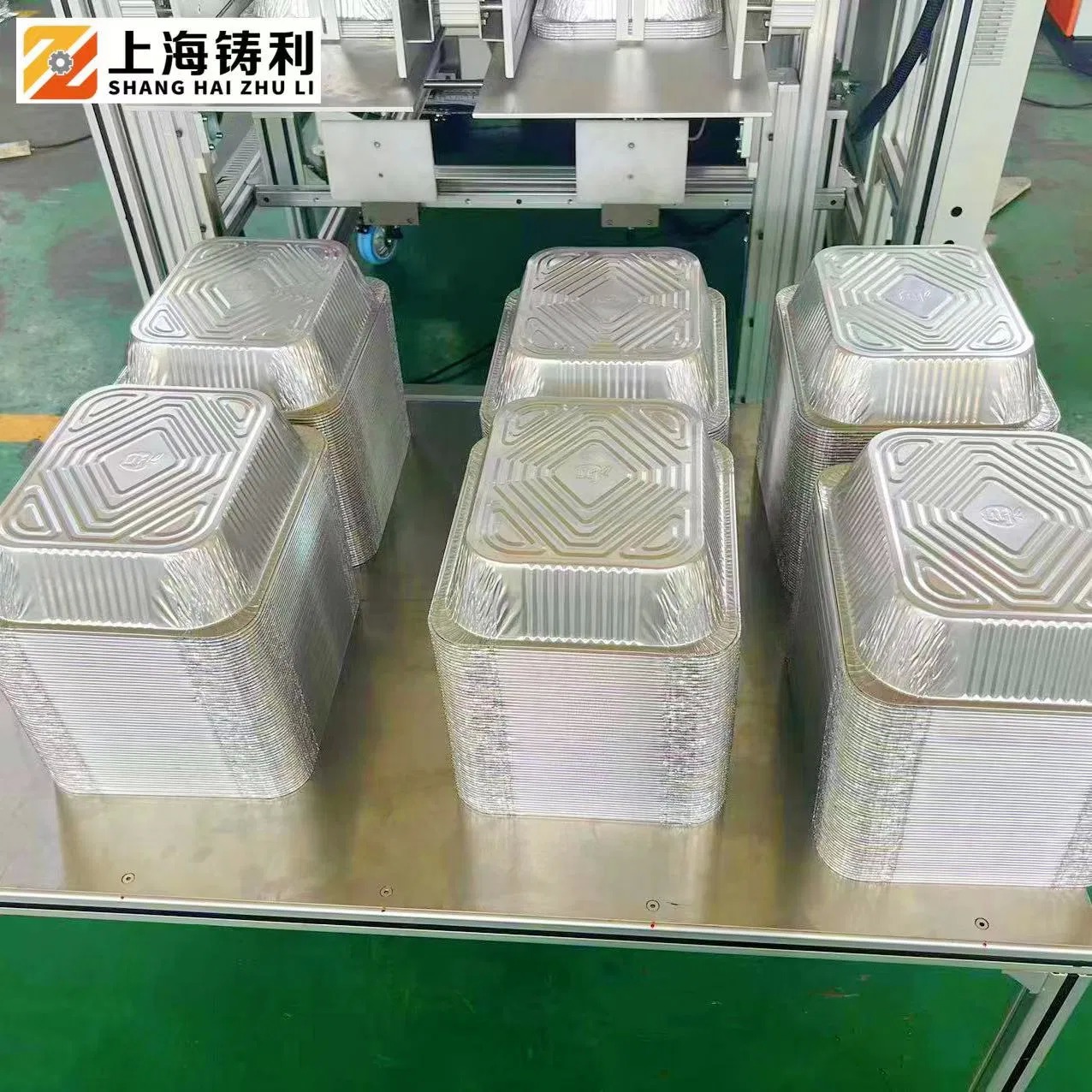

• Stable Stacking: a novel roller design on the stacker improves stacking stability, and the lane width can be adjusted for different container sizes.
• Safety and Service Life: emergency stop with automatic detection, an electric forced grease lubrication system and a closed oil recycling system protect the machine over years of use.

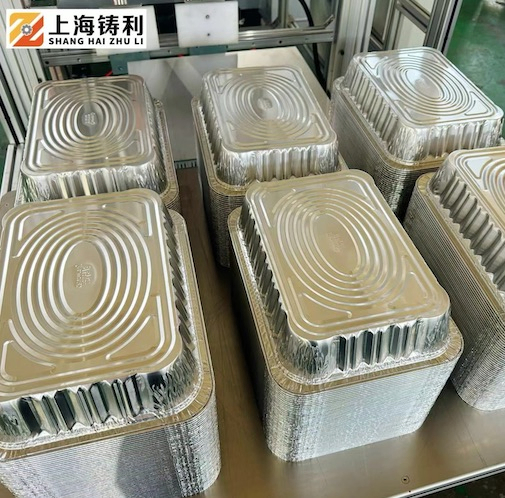

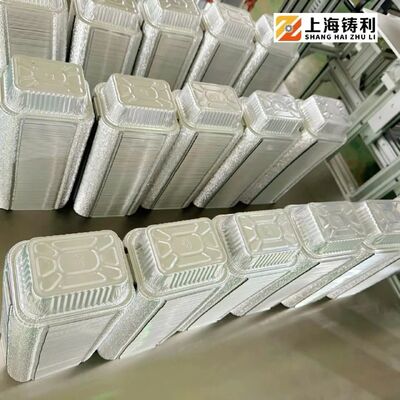

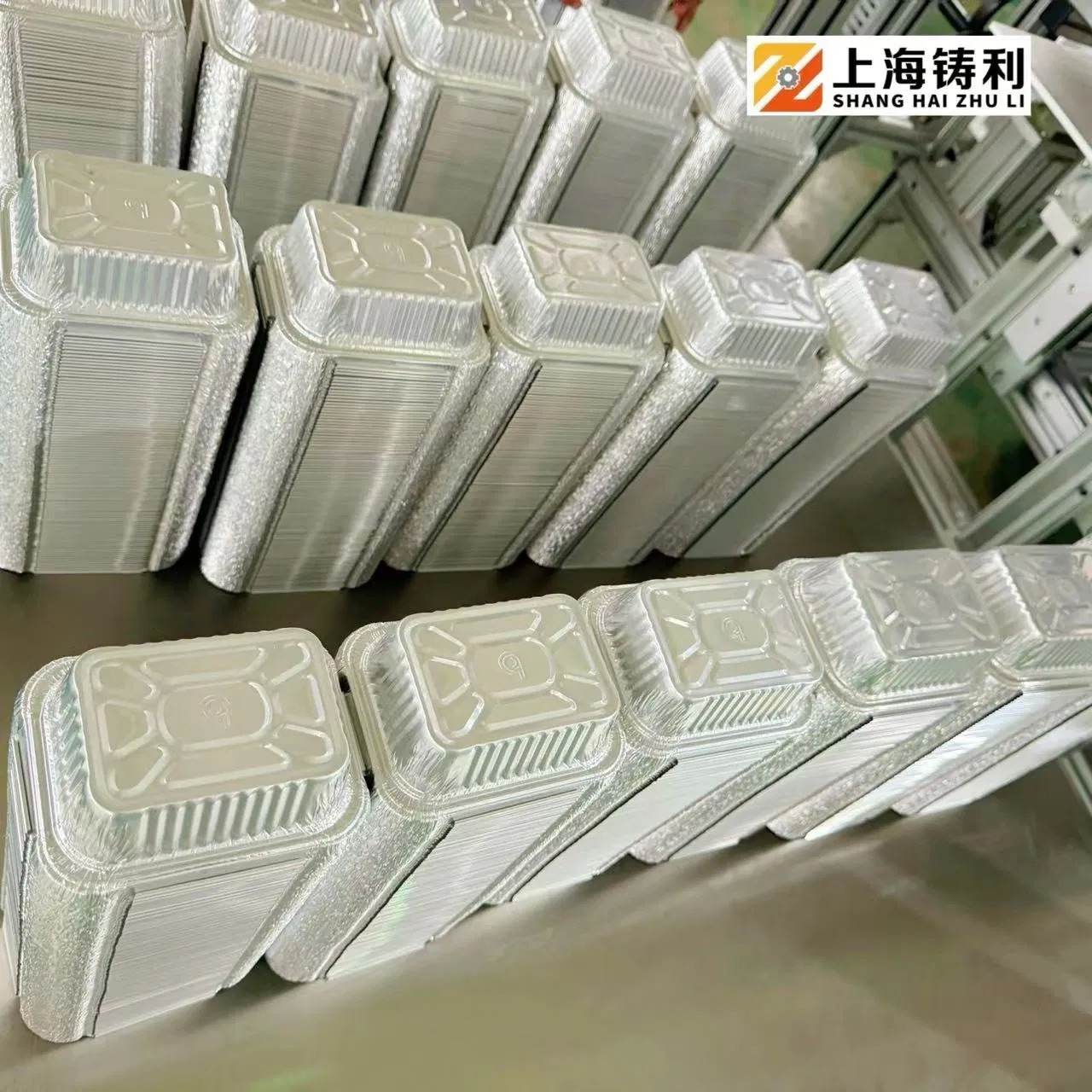

This servo driven line is used by disposable tableware manufacturers, take-away and delivery packaging suppliers, central kitchens, bakery and confectionery brands, supermarket chains and airline catering companies. It produces circular, square, rectangular, oval and custom shaped containers with smooth wall or wrinkle wall profiles, as well as multi-compartment meal trays and lidded containers. Because tooling defines the finished size, a single machine can cover several product families, and factories can move from a small single cavity mold to a large multi-cavity mold without buying a second press. This flexibility keeps the cost per thousand pieces low even when order sizes change frequently.

Every machine and mold is tested and run before packing, and the feeding accuracy, ram height and stacking alignment are verified against the order. The line is fixed inside the container and packed with wooden cabinets so that the press, molds and control cabinet are well protected during shipping. We offer a 12 month warranty from the date of installation and commissioning, together with long term spare parts supply, operator training and engineers available to service the machinery overseas. Consumable parts and replacements are normally sent within three days after confirmation, and online and video technical support are provided throughout the service life of the machine.
