ZL-T63 High Capacity Aluminum Foil Round Container Machine Fully Automatic

Shanghai Zhuli Machinery Co.,Ltd   is a very profeesional manufacter for making fully automaic aluminum foil container machine and molds in China.  Our main product is fully automatic aluminum foil container machine ZL-T63/ ZL-T80/ ZL-T130 and moulds with high quality.  Besides that, we can also provide aluminum foil containers OEM service based on your samples.

The machine ZL-T63 is designed and developed specially for the aluminum food containers, dishes and trays production. From the feeder to stacker, from feeding to punching to stacking, the finished aluminum fol containers can be obtained finally.

The main body of press line ZL-T63 is C-frame press. It’s easy mold replacement and surface production, the bed plate of forming machine equipped two die shifting arm and a die lifter mounted on the press which can change molds high efficiency.

The press configured with a servo motor,to make sure the high precision control of feeding step and speed.The height of the feeding system is automatically adjustable to match the strip height of the tool currently in use on the press.

There are 12 electronic cams(solenoid valves) controlled by a PLC, providing easy Tool setup.The functional usage of multiple cavities molds can be achieved,by large number of air outlets laid on press.

The T63 press is equipped with 5 air tanks.The pneumatic control panel is more easy to operate.The press fits various kinds of molds for wrinkle-wall,smooth-wall, pet, airline containers and folded containers production.

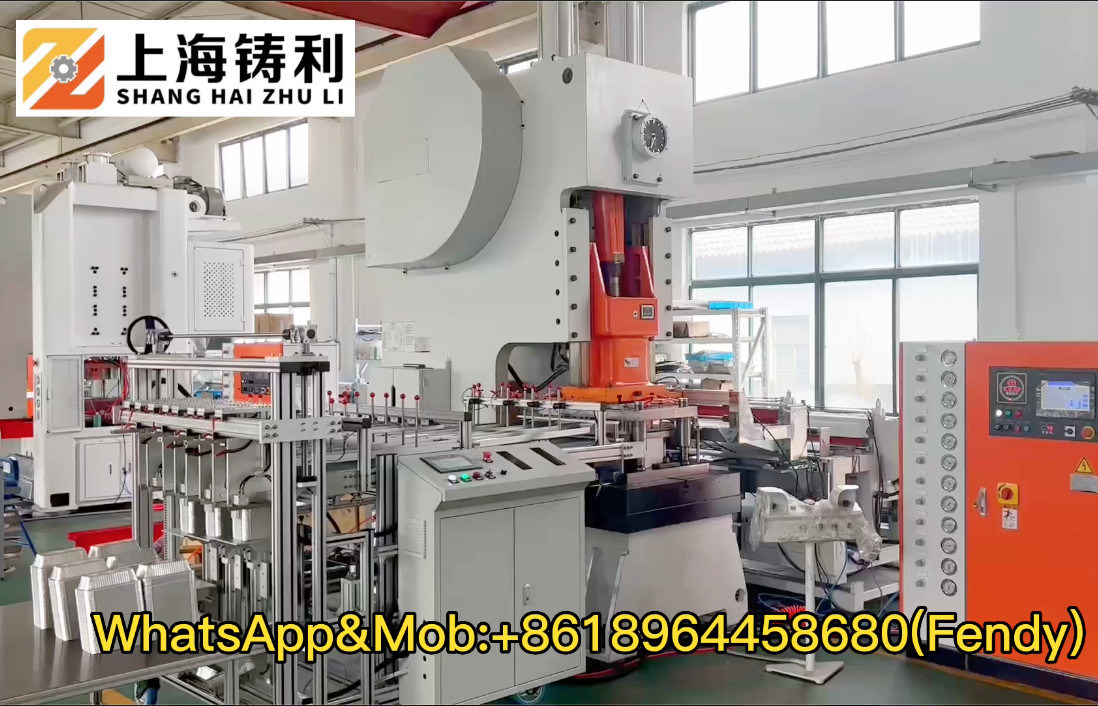

Complete Automatic Press line T 63 include the following parts:
Decoiler+ Press T63 + Mold Shifting arms with Lifter + Safety Door + Scrap Aspirator + Control Cabinet +Stacker+ Scrap Baler .

Our advantages:
1. Top Safety and High efficiency.
2. The replacement of mold is very convenient and easy to operate.
3. The machine has memory function for each mold specification.
4. It's suitable for large size single and double cavities,medium size multiple cavities molds
5. The height of ram is electrically adjustable to satisfied multiple request of different
molds with diverse shapes and sizes.

Components:

1. Air compressor.

2. Automatic decoiler&feeder head.

3. Mitsubishi brand control panel&PLC.

4. 63tons Yangli brand "C" frame pneumatic press.

5. Mould.

6. Auto-stacker with1-4 lanes(optional).

7. scrap aspirator & press machine.

The advantages as below:

1. Top Safety and long lifetime,high precision control of feeding step and speed.

2. The replacement of the mould is convenient and easy to change.

3. The machine has memory function for each mould.

4. It’s suitable for large size single cavity,medium and small size multi-cavity moulds.

5. The height of ram is electrically adjustable to satisfied multiple request of different

moulds with diverse shapes and sizes.

6. Novel design for the roller of stacker,to assure the stronger stability.

7. Emergency stop with the automatic detection.

8. The width of the lanes can be adjustable to fit different size containers stacking.

9. CNC machining center, and its machining accuracy is very high.

10. Electric compelling grease lubrication system.

The moulds we can design and produce are as follows:

1.The moulds that we design and produce are suitable for almost every kind of machine or press.
2. We produce mould with the best quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure moulds are in top quality and long life.
3. To meet customers’ different requirement, we design and manufacture the mould in several rims, such as G rim, L rim, H rim, and IVC etc.
4. We can design and produce the mould in multi-cavities, 1, 2, 3, 4 cavities or more.no matter it is one compartment container or multi-compartments container.

5. We can print your preferred logos upon request.

6.Scientific design make the Cutting Scrap Rate under good control.
7. Container shapes: square, rectangular, circular, oval, special shapes etc.

Company Information:

Our company is superior located in Tinglin Industrial park, Jinshan District,Shanghai,China. It’s close to international airport to us and Shanghai Hongqiao Airport.
ZHULI MACHINERY specially creates and develops AUTOMATIC type aluminum foil container machine and moulds for more than 15 years.

We can support different size of press,such as 63Tons/80Tons/130Tons to meet the different needs of customers. It can be realized fully automatic production from the aluminum foil raw material to the aluminum foil food container.A machine only one person can achieve the automatic production.

At the same time, we can also provide high quality mould customized services for old aluminum foil container factories.

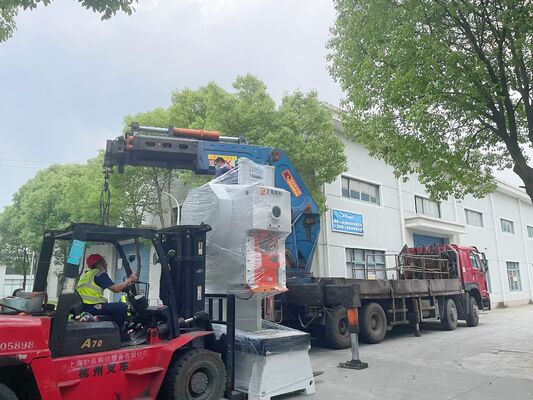

Packing and Delivery:

1.Before packing,we must test the machine and mold to run properly.
2.Stable package,professional and skilled loader reduce damage of product during transport.
3.We fixed our machine in container which will be protected well during shipping.
4.We use the wooden cabinet, protect the machine and mold during shipping.

Our service:

1.Long terms warranty.
2.Special training service for our customer.
3.Consuming part or replacement can be sent to the user within 3 days after confirmation.
4.Finished Products OEM service.
5.Engineers available to service machinery overseas.
6.Online support.
7.Video technical support.

FAQ

Q1: Do you accept customized orders?
A: Yes, we do.

Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.

Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.

Q4: Does the material need lubricating oil?
A: Yes . Lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.After the order is confirmed , we will provide you the oil supplier’s contact information.

Q5: Warranty for machines and molds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.

Q6:How to install machine and train our staff on our factory?
A: We’ll send our engineers to your factory to install, test machines and give your workers.

Q7:Where can i get the aluminum foil jumbo rolls?
A: After order is confirmed we will offer customer jumbo roll supplier's contact information. You can contact them directly and compare the price. Material specification&temperation: ALLOY3003, TemperH24 Or ALLOY 8011, TemperH22.
