Fully Automatic Disposable Foil Container Making Machine 12000KG 260mm

Basic Information
Place of Origin: CHINA
Brand Name: SHANGHAI ZHULI
Certification: CE
Model Number: ZL-T80
Minimum Order Quantity: 1SET
Price: PRICE DISCUSSION
Packaging Details: WOODEN CASE
Delivery Time: 45-60 DAYS
Payment Terms: T/T
Supply Ability: 100SET/YEAR
Detail Information
COLOR: WHITE ABD ORANGE WEIGHT: 12000KG
SIZE: 7.5*7*4M POWER: 24KW
VOLTAGE: 380V. 50HZ 3 PHASE TYPE: NEW
Product Name: Aluminum Foil Cup Making Machine Slide Stroke (mm): 180-260
High Light:

Fully Automatic Foil Container Making Machine

,

Disposable Foil Container Making Machine

,

260mm aluminium foil making machine


Product Description



               FULLY AUTOMATIC DIPOSABLE FOIL CONTAINER MAKING MACHINE



The press  ZL-T80/T130 is designed and developed specially for the aluminum food containers,dishes and trays production. From the decoiler to stacker ,from feeding to punching to stacking. Those aluminum foil containers can be obtained finally.


The main body of press T80/T130 is a' H-frame. Its recycling and closed system for lubricated oil .It’s easy for mold replacement and surface production,we have a die shifting arm and a die lifter mounted on the press which can change molds high efficiency.


The press configured with a servo motor,to make sure the high precision control of feeding step and speed.The height and location of the feeding system is adjustable to match the height of the tool currently in use on the press.


There are 12 electronic cams controlled by a PLC, providing simple operation settings. The functional usage of multiple cavities molds can be achieved,by large number of air outlets laid on press.


The ZL-T80/T130 press is equipped with 5 air tanks. The pneumatic control panel is more easy to operate.The press fits various kinds of molds for wrinkle-wall,smooth-wall,pet, airline containers and folded containers production.


Complete Automatic Press line T80/T130 include the following parts:
Decoiler+Press T80/T130+Mold Shifting arms with Lifter +Scrap Aspirator+Control Cabinet+ Stacker+ Scrap Baler.





The advantages as below:



1. Top Safety and long lifetime,high precision control of feeding step and speed.



2. The replacement of the mould is convenient and easy to change.



3. The machine has memory function for each mould.



4. It’s suitable for large size single cavity,medium and small size multi-cavity moulds.



5. The height of ram is electrically adjustable to satisfied multiple request of different moulds with diverse shapes and sizes.



6. Novel design for the roller of stacker,to assure the stronger stability.



7. Emergency stop with the automatic detection.



8. The width of the lanes can be adjustable to fit different size containers stacking.



9. CNC machining center, and its machining accuracy is very high.



10. Electric compelling grease lubrication system.

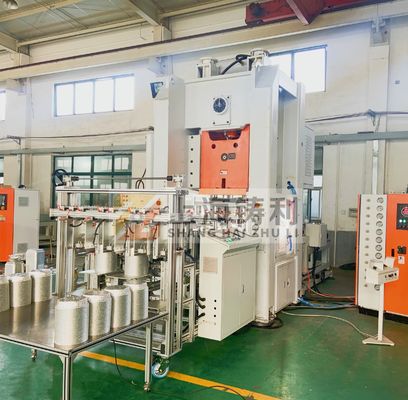

Fully Automatic Disposable Foil Container Making Machine 12000KG 260mm 0







Quick Details:



Slide Stroke (mm): 180-260mm customized
Machine Type: H Frame Hydraulic Press
Return Force (kN): 800 KN
System: Servo
Condition: New
Place of Origin: Shanghai, China
Brand Name: SHANGHAI ZHULI
Year: 2020
Voltage: 380V 50HZ 3P
Dimension(L*W*H): 1800MM*1400MM*3800MM
Certification: CE
Weight (T): 12 T
Model Number: ZL-80TONS
Motor Power (kw): 16 kw
Key Selling Points: Automatic
Warranty: More than 5 years
After-sales Service Provided: Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries: Manufacturing Plant
Local Service Location: India
Showroom Location: Egypt, Canada, Turkey, United States, Brazil, Pakistan, India, Mexico, Russia, Spain, UAE, South Africa
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
Function: Make aluminum foil Container
Motor: Siemens Germany
PLC: Mitsubishi Japan
LOW-voltage: Schneider
Pneumatic: SMC
WORKING SPEED: 40-68STROKE/MIN
Type: Fully Automatic
Technology: Advanced Technology
Die height adjustable: 390-470mm
Nominal Force (kN): 800KN


Components:



1. Air compressor.



2. Automatic decoiler&feeder head.



3. Mitsubishi brand control panel&PLC.



4. 80tons Yangli brand H frame pneumatic press.



5. Aluminum foil container Mould.



6. Auto-stacker with1-5 lanes(optional).



7. Scrap aspirator & press machine.



Fully Automatic Disposable Foil Container Making Machine 12000KG 260mm 1





High speed aluminum foil container making machine



Mold processing equipment:



High speed aluminum foil container making machine High speed aluminum foil container making machine



High speed aluminum foil container making machine High speed aluminum foil container making machine

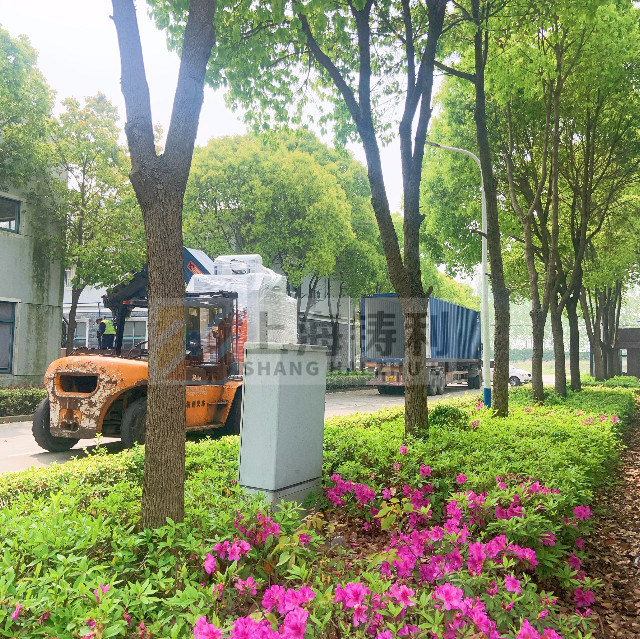

Packing and Delivery:



1. Before packing,we must test the machine and mold to run properly.


2. Stable package,professional and skilled loader reduce damage of product during transport.


3. We fixed our machine in container which will be protected well during shipping.


4. We use the wooden cabinet, protect the machine and mold during shipping.



High speed aluminum foil container making machine High speed aluminum foil container making machine


Fully Automatic Disposable Foil Container Making Machine 12000KG 260mm 9 Fully Automatic Disposable Foil Container Making Machine 12000KG 260mm 10



Our service:



1. Long terms warranty.



2. Special training service for our customer.


3. Consuming part or replacement can be sent to the user within 3 days after confirmation.



4. Finished Products OEM service.



5. Engineers available to service machinery overseas.



6. Online support.



7. Video technical support.





FAQ

Q1: Do you accept customized orders?
A: Yes, we do.


Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.


Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.



Q4: Does the material need lubricating oil?

A: Yes . Lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.After the order is confirmed , we will provide you the oil supplier’s contact information.



Q5: Warranty for machines and moulds?

A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.



Q6: How to install machine and train our staff on our factory?

A: We’ll send our engineers to your factory to install, test machines and give your workers.



Q7: Where can i get the aluminum foil jumbo rolls?

A: After order is confirmed we will offer customer jumbo roll supplier's contact information. You can contact them directly and compare the price.

Material specification&temperation: ALLOY3003, TemperH24 Or ALLOY 8011, TemperH22.
