| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SHANGHAI ZHULI |
| Certification: | CE |
| Model Number: | ZL-T80 |
| Minimum Order Quantity: | 1SET |
| Price: | USD 65000$-70000$ |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 45-60 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100SET/YEAR |
| COLOR: | WHITE ABD ORANGE | WEIGHT: | 11000KG |
|---|---|---|---|
| SIZE: | 6.5*6*3.8M | POWER: | 18KW |
| VOLTAGE: | 380V. 50HZ 3 PHASE | TYPE: | NEW |
| High Light: | 18KW Foil Container Production Line,50HZ Foil Container Production Line,50HZ aluminum foil making machine |
||
Components:
1.Air compressor.
2. Automatic decoiler&feeder head.
3. Mitsubishi brand control panel&PLC.
4. 63tons Yangli brand "C" frame pneumatic press.
5. Aluminum foil container Mould.
6. Auto-stacker with1-4 lanes(optional).
7. scrap aspirator & press machine.
| Model | ZL-T63 |
| Stroke | 180-240mm |
| Working Speed | 40~68strokes/min |
| Raw material | Alloy 8 Series & 3 Series |
| Aluminum foil thickness | 0.035mm~0.250mm |
| Compressed air needed | 0.5- 0.8 Mpa, 0.2m3/min |
| Power | 3P, 380V, 50Hz |
| Weight | 9000KG |
| Solenoid valve with adjustable pressure | 12 |
| Feeder level adjustable | Electric |
The advantages as below:
1.Top Safety and long lifetime,high precision control of feeding step and speed.
2.The replacement of the mould is convenient and easy to change.
3.The machine has memory function for each mould.
4.It’s suitable for large size single cavity,medium and small size multi-cavity moulds.
5.The height of ram is electrically adjustable to satisfied multiple request of different
moulds with diverse shapes and sizes.
6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.
8.The width of the lanes can be adjustable to fit different size containers stacking.
9.CNC machining center, and its machining accuracy is very high.
10. Electric compelling grease lubrication system.
The moulds we can design and produce are as follows:
1.The moulds that we design and produce are suitable for almost every kind of machine or press.
2. We produce mould with the best quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure moulds are in top quality and long life.
3. To meet customers’ different requirement, we design and manufacture the mould in several rims, such as G rim, L rim, H rim, and IVC etc.
4. We can design and produce the mould in multi-cavities, 1, 2, 3, 4 cavities or more.no matter it is one compartment container or multi-compartments container.
5. We can print your preferred logos upon request.
6.Scientific design make the Cutting Scrap Rate under good control.
7. Container shapes: square, rectangular, circular, oval, special shapes etc.
Company Information:
Our company is superior located in Tinglin Industrial park, Jinshan District,Shanghai,China. It’s close to international airport to us and Shanghai Hongqiao Airport.
ZHULI MACHINERY specially creates and develops AUTOMATIC type aluminum foil container machine and moulds for more than 15 years .
We can support different size of press,such as 63Tons/80Tons/130Tons to meet the different needs of customers. It can be realized fully automatic production from the aluminum foil raw material to the aluminum foil food container.A machine only one person can achieve the automatic production.
At the same time, we can also provide high quality mould customized services for old aluminum foil container factories.

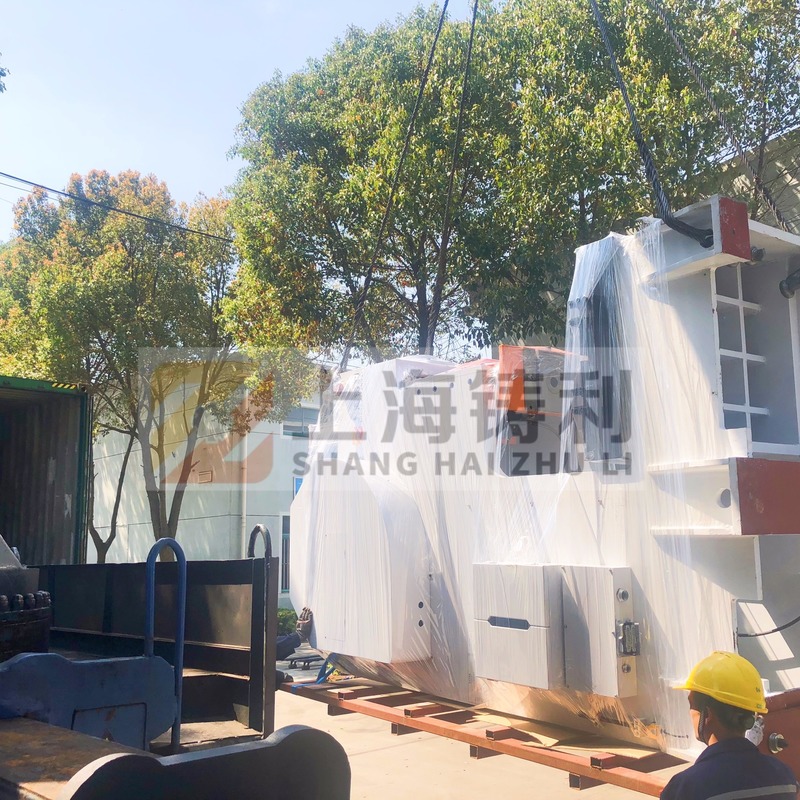

Packing and Delivery:
1.Before packing,we must test the machine and mold to run properly.
2.Stable package,professional and skilled loader reduce damage of product during transport.
3.We fixed our machine in container which will be protected well during shipping.
4.We use the wooden cabinet, protect the machine and mold during shipping.
Our service:
1.Long terms warranty.
2.Special training service for our customer.
3.Consuming part or replacement can be sent to the user within 3 days after confirmation.
4.Finished Products OEM service.
5.Engineers available to service machinery overseas.
6.Online support.
7.Video technical support.
FAQ
Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: Does the material need lubricating oil?
A: Yes . Lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.After the order is confirmed , we will provide you the oil supplier’s contact information.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: We’ll send our engineers to your factory to install, test machines and give your workers.
Q7:Where can i get the aluminum foil jumbo rolls?
A: After order is confirmed we will offer customer jumbo roll supplier's contact information. You can contact them directly and compare the price. Material specification&temperation: ALLOY3003, TemperH24 Or ALLOY 8011, TemperH22.
