| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SHANGHAI ZHULI |
| Certification: | CE |
| Model Number: | ZL-T130 |
| Minimum Order Quantity: | 1SET |
| Price: | Price discussion |
| Packaging Details: | wooden case |
| Delivery Time: | 45-60days |
| Payment Terms: | T/T |
| Supply Ability: | 100SET/Year |
| MODEL: | ZL-T80 | SPEED: | 50-65 TIMES/MIN |
|---|---|---|---|
| MOTOR POWER: | 18 KW | VOLTAGE: | 380V 50HZ 3 PHASE |
| LAYOUT SIZE: | 7.5*7.7*4M | TYPE: | SERVO |
| SLIDE STOKES: | 180-260mm Customized | MACHINE TYPE: | H Frame Hydraulic Press |
| CONDITION: | NEW | MOTOR: | SIEMENS |
| SWITCH: | SCHNEIDER | PLC: | MITSUBISHI |
| FEEDING: | SERVO MOTOR MITSUBISHI | ||
| High Light: | 65 TIMES/MIN Food Container Machine,High Speed Foil Food Container Machine,Aluminium Food Container Machine 50HZ |
||

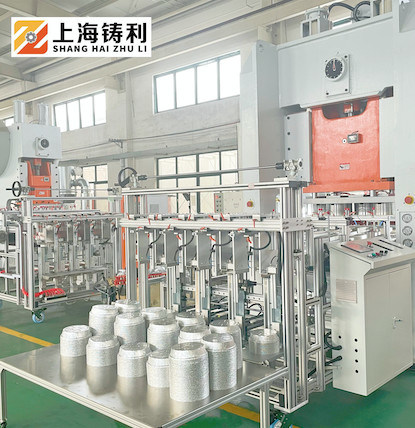

Components:
1). Air compressor.
2). Automatic decoiler&feeder head.
3). Mitsubishi brand control panel&PLC.
4).130 Tons Yangli brand H frame pneumatic press.
5). Aluminum foil container Mould.
6). Auto-stacker with1-5 lanes(optional).
7). Scrap aspirator & Press machine.
Specification:
| Model | ZL-T130 |
| Press Capacity | 130 Tons |
| Stroke Time | 35-68 times/ min. |
| Stroke | 180 - 260mm customized |
| Max. Height of Mould Installation | 470+100mm |
| Mould Height Adjustment | 80mm |
| Work Plate | 1480x1100mm |
| Max. Size of mould | 1400x1000mm |
| Dimension of RAM Bottom | 360x580mm |
| Air Stock Container | 5 Units |
| Air Solenoid Value | 12*SMC Solenoid Value |
| Press Net Weight | 12,500KGS |
| Main Motor SIEMENS | AC 18KW |
| Press Total Power | 16.8KW |
| Press Dimension | 1770×2150×3800mm |
| Decoiler | D-1200 |
| Max. Diameter of Jumbo Roll | 1200mm |
| Feeder Rollers Length | 1050mm |
| Max. Width of Jumbo Roll | 1180mm |
| Feeding speed | 1-50m/min |
| Feeding length | 20-1000mm |
| Feeding Controller | Servo Controller |
| Feeding precision | ±0.1mm |
| Main Motor | AC 2.5KW |
| Decoiler Total Power | 3.5KW |
| Decoiler Dimension(L×W×H) | 1600×1650×1230mm |
| Net weight | 950KG |
| Auto Stacker: | S-1400 |
| Collector Belt Width | 1400mm |
| Collector Belt Height | 1050-1400mm |
| Min. Container Dimensions | 120x120mm |
| Max. Container Dimensions |
1 Way:W1200xL400mm 2 Ways:W490xL400mm 3 Ways: W330xL400mm 4 Ways: W250xL400mm |
| Max. Height of Container | 400mm |
| Installed Power | 3.0KW |
| Net. Weight | 900KG |
| Scrap Foil Collecting System | Scrap Aspirator, Scrap Press |
| Scrap Sucker | 1 Sets, 3.0KW |
| Scrap Press | 1Set, Main Motor 5.5KW, three sets hydraulic units |
Factory Environment:
The advantages as below:
-Top Safety and long lifetime,high precision control of feeding step and speed.
-The replacement of the mould is convenient and easy to change.
-The machine has memory function for each mould.
-It’s suitable for large size single cavity,medium and small size multi-cavity moulds.
-The height of ram is electrically adjustable to satisfied multiple request of different moulds with diverse shapes and sizes.
-Novel design for the roller of stacker,to assure the stronger stability.
-Emergency stop with the automatic detection.
-The width of the lanes can be adjustable to fit different size containers stacking.
-CNC machining center, and its machining accuracy is very high.
-Electric compelling grease lubrication system.
Aluminum Foil container Mold:
1.The moulds that we design and produce are suitable for almost every kind of machine or press.
2. We produce mould with the best quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure moulds are in top quality and long life.
3. To meet customers’ different requirement, we design and manufacture the mould in several rims, such as G rim, L rim, and IVC etc.
4. We can design and produce the mould in multi-cavities, 1, 2, 3, 4 cavities or more.no matter it is one compartment container or multi-compartments container.
5. We can print your preferred logos upon request.
6.Scientific design make the Cutting Scrap Rate under good control.
7. Container shapes: square, rectangular, circular, oval, special shapes etc.
Mold Processing Equipment:
Packing and Delivery:
-- Before packing,We must test the machine and mold to run properly.
-- Stable package,professional and skilled loader reduce damage of product during transport.
-- We fixed our machine in container which will be protected well during shipping.
-- We use the wooden cabinet, protect the machine and mold during shipping.
FAQ
Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: Does the material need lubricating oil?
A: Yes . Lubricating oil is very important, the oil is food grade and its special. Normally, we will offer customer oil supplier information after order is confirmed. Before you run the machine just pure the oil into the tank directly.After the order is confirmed , we will provide you the oil supplier’s contact information.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: We’ll send our engineers to your factory to install, test machines and give your workers.
Q7:Where can i get the aluminum foil jumbo rolls?
A: After order is confirmed we will offer customer jumbo roll supplier's contact information. You can contact them directly and compare the price.
Material specification&temperation: ALLOY3003, TemperH24 Or ALLOY 8011, TemperH22
